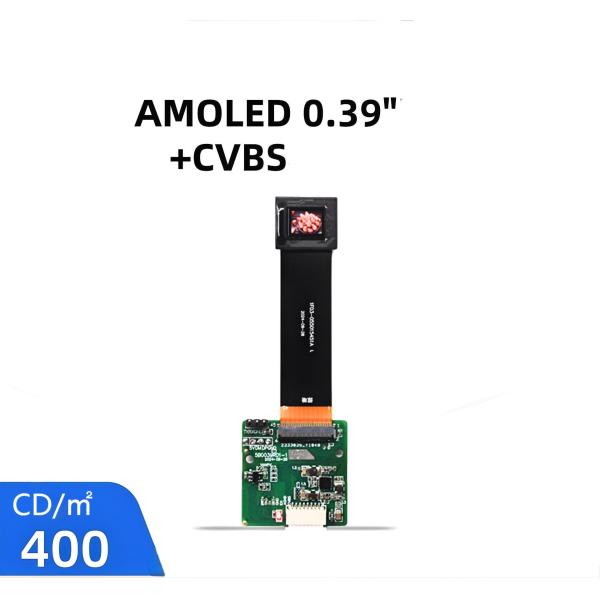

0.39 Inch Monochrome Micro OLED Display CVBS Interface 1024*768 400cd/M² Brightness

[0.39-inch Single Green Night Vision Screen] AMOLED CVBS Interface, 1024*768 High Definition, 400cd/m², Suitable for Scopes / Night Vision Imaging Devices, Low Light and High Contrast

The key advantages of Micro OLED (Silicon-based OLED) is an advanced display technology:

• Ultra-High Pixel Density (PPI)
• Thin, Lightweight, and compact
• Superior Image Quality
• Lower power consumption
• Wide operating Temperature Range
• High brightness & Efficiency (with advanced designs)
• Manufacturing & Scalability benefits

Micro OLED Disadvantages:

• High production costs & limited supply
• Limited brightness (compared to Micro LED)
• Limited view angles
• Shorter lifespan (compared to micro LED)
• Limited application scope (small display only)
• Motion Blur & Persistence issues (in VR)
• Competition from micro LED

• Factory base located at inland city which has cost effective
• Most advanced new equipment which can keep quality stable
• Most processes using fully automatic equipment which has efficiency and stable quality
• Professional engineers and production leaders who works in LCD field for more than 20 years
• Self design for customized product

Our certificates:

• ISO14001
• ISO9001/IATF16949
• SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

• Hubei.Enshi
• Date of foundation: 2009
• High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
• LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB, TBA, COG, TP, OLED and other series
• Register capital: twenty million
• Current staff: 500+
• RD accounts for 10%
• QC accounts for 15%

• VR/AR/MR headsets
• Military / aerospace
• Medical devices and microdisplays
• Camera & electronic viewfinders
• Automotive display
• Wearable & smart glasses

Challenges:

• Limited lifespan (blue OLEDs degrade faster)
• Higher manufacturing cost due to silicon wafer integration
• Currently small sizes (not suitable for TVs)

Future of Micro OLED:

Expected to dominate AR/VR and wearable displays due to unmatched pixel density.

Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this tech.
